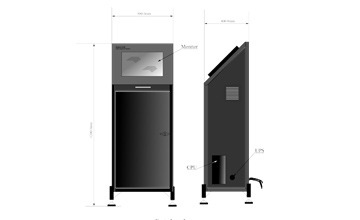

LIS Online- Online system for inspecting the labeling related errors.
Read More
lis-standerd

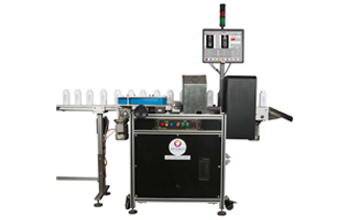

LIS Standard- Stand-alone machine for inspecting the Labeling related errors.
Read More
optomech-horizantal-lline-02

LIS ONLINE


optomech-lis-online-about

About LIS Online


High performance system for checking visual defects in labelled bottles. Two cameras provide inspection for both the sides of the bottle. The cameras and ejection are installed on the labeling machine, and a separate control cabinet with touch screen user interface is provided.

optomech-horizantal-lline-02

Inspection Images


Inspection Points

  • Label Shifting in Horizontal Direction
  • Label Shifting in Vertical Direction
  • Missing Label
  • Half Label
  • Wrong Label
  • Label Upside Down
  • Damaged Label

Learn more

Technical Specificaions


ModelOPTOMECH – LABEL INSPECTION SYSTEM ON-LINE
SPEEDUp to max 11,000 bottles per hour
BOTTLE SIZEHeight (Min/Max): 50/ 200 mm max
Width: 110 mm Max
Depth/Dia: 95 mm Max
Min gap between bottles: 25mm
ACCURACY0.5 mm For bottle height of 50 mm.
DEFECTS DETECTEDLabel Shifting, in horizontal and vertical direction. Missing Label, Half Label, Wrong Label, Label upside down, Damaged Label
MACHINE SIZEController Cabinet: Weight: 150 Kg
CONVEYORMain conveyor: Belt
Width: 100
Length: 1085
Clamp conveyor: Belt
width : 60mm
Length: 480 mm
Conveyor Height: 960mm
Belt Speed: Upto 30 m/min
UTILITIESVoltage and Current: Ac 415 v 3 phase, 5A. Compressed Air : 6-10 Bar, oil free clean air, Push in connection 6mm.
OPERATING CONDITIONSTemperature : +10 °C to +40°C
Humidity: 40% -90% RH, non-condensing.
Maximum operating altitude: 1900 m
optomech-lis-online-softwear

Machine Dimension


optomech-lis-online-machine-dimension
optomech-horizantal-lline-02

LIS Standard


optomech-lis-standard

About LIS Standard


High performance system for checking visual defects in labelled bottles. Two cameras provide inspection for both the sides of the bottle. Special clamp conveyor to convey the bottles from labeling machine to the LIS machine.

optomech-horizantal-lline-02

Inspection Images


Inspection Points

  • Label Shifting in Horizontal Direction
  • Label Shifting in Vertical Direction
  • Missing Label
  • Half Label
  • Wrong Label
  • Label Upside Down
  • Damaged Label

Learn more

optomech-lis-standard-soft

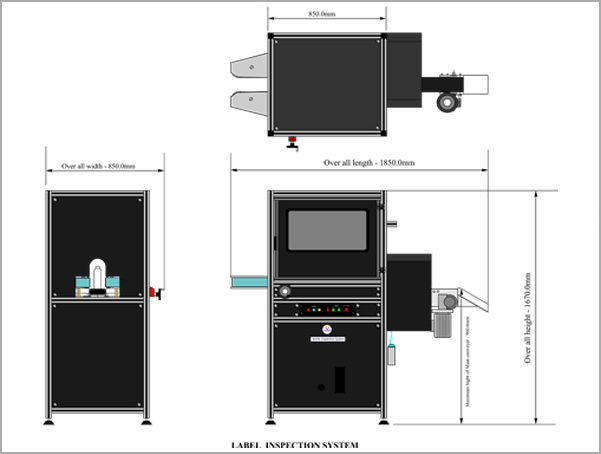

Machine Dimension


optomech-lis-me

Technical Specificaions


ModelOptomech – Label inspection system Standard
SPEEDUp to max 11,000 bottles per hour
BOTTLE SIZEHeight (Min/Max): 50/ 200 mm max
Width: 110 mm Max
Depth/Dia: 95 mm Max
Min gap between bottles: 25mm
ACCURACY0.5 mm For bottle height of 50 mm.
DEFECTS DETECTEDLabel Shifting, in horizontal and vertical direction. Missing Label, Half Label, Wrong Label, Label upside down, Damaged Label
MACHINE SIZEController Cabinet: Weight: 150 Kg
CONVEYORMain conveyor: Belt
Width: 100
Length: 1085
Clamp conveyor: Belt
width : 60mm
Length: 480 mm
Conveyor Height: 960mm
Belt Speed: Upto 30 m/min
UTILITIESVoltage and Current: Ac 415 v 3 phase, 5A. Compressed Air : 6-10 Bar, oil free clean air, Push in connection 6mm.
OPERATING CONDITIONSTemperature : +10 °C to +40°C
Humidity: 40% -90% RH, non-condensing.
Maximum operating altitude: 1900 m
