Specialized Metrology · PBMS Series

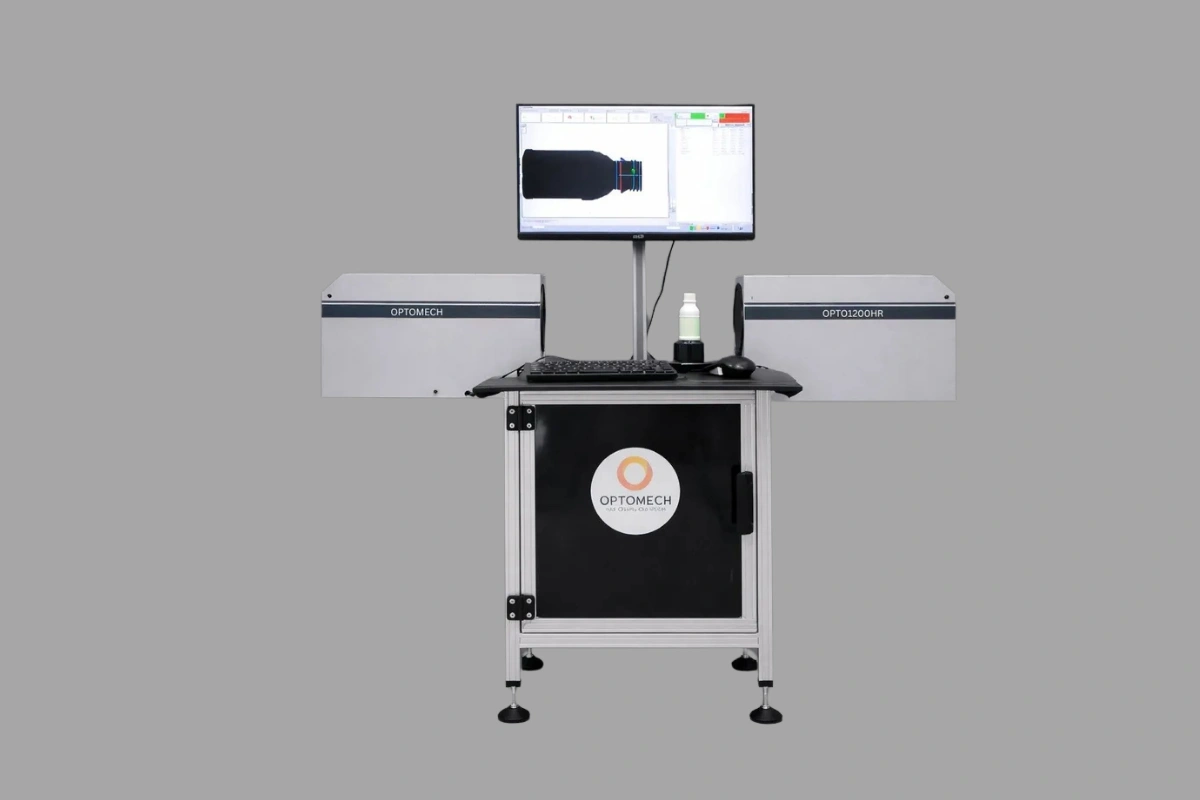

Plastic Bottle Measurement System — Full Geometry Inspection at ±5 µm

Fully Automatic. Zero Contact. Every Bottle.

Certified: NABL Traceable Made in India ISO 9001 45+ Years

Optomech PBMS is a fully automated, non-contact optical inspection system for plastic bottles of all types. Load a bottle, rotate it 360°, execute a 7-step automated workflow, and receive a complete dimensional report in seconds. ±5 µm accuracy. HDPE, PP, PET. FMCG-ready.

100%Automated

±5 µmAccuracy

20 MPCMOS Sensor

7-StepWorkflow

3 Models1200/1750/1900

Request a Demo Download Brochure

What Is PBMS?

Fully Automated Plastic Bottle Inspection

PBMS 1200 PBMS 1750 PBMS 1900

The PBMS (Plastic Bottle Measurement System) performs 100% optical inspection of plastic bottles without any contact. The operator places a bottle on the rotating stage, the system automatically:

Accuracy ±5 µm

Least Count 1 µm

Sensor 20MP CMOS

Illumination Collimated Blue LED

7-Step Automated Workflow: Prepare template once, inspect indefinitely. Every bottle follows the exact same sequence: load, rotate 360°, capture at precise angles, edge-detect, measure all dimensions, compare to limits, generate report.

Industries: FMCG, Food & Beverage, Agrochemicals, Household Chemicals, Personal Care plastics. Used by ALPLA, leading beverage manufacturers, and FMCG companies for shift, batch, and daily compliance.

Dimensions

What Does PBMS Measure?

A single PBMS routine captures every critical dimension in your plastic bottle design.

Bottle height (total & sections)
Body diameter (multiple points along length)
Neck diameter (inside & outside)
Thread dimensions & pitch
Shoulder angle & geometry
Base diameter & flatness
Label panel dimensions & angles
Multiple component inspection in one session

Template-Based Operation: Define your inspection sequence once per bottle design. Save the template. From that moment on, any operator can select the template and inspect 100+ bottles per shift with identical repeatability and zero re-setup time.

Three Models

PBMS 1200 · PBMS 1750 · PBMS 1900

Choose your model based on the largest bottle diameter you need to inspect. All three use the same 20MP CMOS, double telecentric lens, 7-step workflow, and Opto Precision software.

PBMS 1200

119.74 × 80.12 mm field of view

Compact system for smaller plastic bottles. Ideal for personal care, household and agrochemical bottles.

Field of View 119.74 × 80.12 mm

Machine size (W × L × H) 1158 × 454 × 1237 mm

PBMS 1750

175.61 × 117.50 mm field of view

Most versatile model. Accommodates medium plastic bottles for beverage, food, and FMCG packaging. The sweet spot for production quality control and 100% final inspection.

Field of View 175.61 × 117.50 mm

Machine size (W × L × H) 1348 × 474 × 1287 mm

PBMS 1900

190.88 × 127.72 mm field of view

Large-format model for big plastic bottles — 2L+, wide-mouth containers, and industrial packaging. Single inspection captures entire bottle profile.

Field of View 190.88 × 127.72 mm

Machine size (W × L × H) 1896 × 514 × 1287 mm

PBMS technical specifications

Key figures from the PBMS brochure for the three plastic bottle measurement models.

PBMS technical specifications
Specification	PBMS 1200	PBMS 1750	PBMS 1900
Image pickup device	1″, 20 MP monochrome CMOS	1″, 20 MP monochrome CMOS	1″, 20 MP monochrome CMOS
Display	24″ LCD monitor (FHD 1920 × 1080)	24″ LCD monitor (FHD 1920 × 1080)	24″ LCD monitor (FHD 1920 × 1080)
Video projection lens	Double telecentric lens	Double telecentric lens	Double telecentric lens
Field of view	119.74 × 80.12 mm (144 mm diagonal)	175.61 × 117.50 mm (211 mm diagonal)	190.88 × 127.72 mm (230 mm diagonal)
Least count	1 µm	1 µm	1 µm
Accuracy	±5 µm	±5 µm	±5 µm
Repeatability	±5 µm	±5 µm	±5 µm
Illumination	Telecentric collimated blue LED	Telecentric collimated blue LED	Telecentric collimated blue LED
External output	24 V DC, 0.5 A (optional)	24 V DC, 0.5 A (optional)	24 V DC, 0.5 A (optional)
Interfaces	RJ-45 (remote support), USB 3.0	RJ-45 (remote support), USB 3.0	RJ-45 (remote support), USB 3.0
Monitor output	HDMI, DisplayPort	HDMI, DisplayPort	HDMI, DisplayPort
Measurement data storage	512 GB SSD	512 GB SSD	512 GB SSD
Machine size (W × L × H)	1158 × 454 × 1237 mm	1348 × 474 × 1287 mm	1896 × 514 × 1287 mm
Construction	Floor-standing with levelling pads	Floor-standing with levelling pads	Floor-standing with levelling pads
Utilities	240 V AC, 50/60 Hz, 1 phase; 660 W	240 V AC, 50/60 Hz, 1 phase; 660 W	240 V AC, 50/60 Hz, 1 phase; 660 W

Source: Optomech PBMS brochure. Specifications may change with product development; final figures are confirmed in your quotation. Accuracy and repeatability figures carry a footnote mark in the brochure. The full brochure with layout drawings is available through the brochure download form on this page.

Process

How PBMS Works

Prepare Template

Operator runs a test bottle through the 7-step workflow, verifies measurements against drawing, and saves the inspection sequence as a reusable template.

Place Bottle

Load a plastic bottle onto the rotating stage. The sensor automatically detects bottle presence and centers it for measurement.

7-Step Auto-Inspect

Stage rotates 360°. At each step, the 20MP CMOS captures an image. Double telecentric lens + blue LED ensure consistent edge detection. Dimensions computed in real time.

Report & Analyse

Dimension data compared to limits. Pass/Fail verdict. Full report (shift, batch, daily). CPK/SPC trends available. Remote support via network interface.

Technology Platform

Every component engineered for plastic bottle inspection

Blue LED Telecentric Illumination

Collimated blue light optimized for the optical properties of plastic (HDPE, PP, PET). Eliminates glare, shadow, and refraction artifacts. Repeatable edge detection on clear, translucent, and opaque bottles.

20MP CMOS Sensor

High-resolution digital sensor delivers 1 µm least count and ±5 µm accuracy. 512GB SSD storage for templates, images, and reports. Fast frame rate supports 360° rotation and multi-step capture.

Double Telecentric Lens

Telecentric on both object and image sides ensures zero perspective distortion and magnification-independent measurement. Critical for accurate edge detection across the entire field of view.

Auto-Rotation Stage

Powered 360° stage with stepper motor and precision home sensor. Captures bottle geometry at configurable angular intervals (7 steps standard). Repeatable positioning for every inspection.

Markets

Industries Using PBMS

PBMS is trusted by manufacturers across the fast-moving consumer goods, beverage, and specialty chemicals sectors.

FMCG

Detergents, soaps, personal care bottles

Food & Beverage

Juice, water, energy drinks, sauces

Agrochemicals

Pesticide, fertilizer, and chemical containers

Household Chemicals

Bleach, acids, disinfectants, cleaners

Personal Care

Shampoo, lotion, oil, and skincare bottles

Specialty Packaging

Wide-mouth, industrial, and custom shapes

Download PBMS Brochure

Get detailed specifications, fields of view, SPC features, and customer case studies

Questions

Frequently Asked Questions

What is the PBMS and how does it work? +

The PBMS (Plastic Bottle Measurement System) is a 100% automated optical inspection system that measures plastic bottles without any contact. The operator places a bottle on the auto-rotating stage, the system automatically rotates it 360°, and the 20MP CMOS camera with double telecentric lens captures precise dimensional data through 7 sequential inspection steps, then generates an automated report.

What dimensions does the PBMS measure? +

The PBMS measures: bottle height, body diameter (multiple points), neck diameter, thread dimensions, shoulder angle, base diameter, and label panel geometry. All measurements are performed in a single automated session with ±5 µm accuracy.

What is the accuracy of the PBMS? +

PBMS delivers ±5 µm accuracy with a 1 µm least count. The system uses a 20MP CMOS sensor, double telecentric lens, and collimated blue LED illumination to ensure repeatable, traceable measurement of plastic bottle geometry.

How long does an inspection take? +

Each bottle inspection takes only seconds — the exact time depends on the number of dimensions being measured and the configured 7-step workflow. Template-based operation means once the inspection sequence is set up, all subsequent bottles are inspected identically and automatically.

What are the three PBMS models? +

PBMS 1200 (119.74 × 80.12 mm field of view), PBMS 1750 (175.61 × 117.50 mm) and PBMS 1900 (190.88 × 127.72 mm). Choose based on the largest bottle you need to inspect. All three share the same 20MP CMOS sensor, double telecentric lens, and 7-step workflow.

Can PBMS inspect different bottle types in one session? +

Yes. The PBMS uses template-based operation — you define one inspection program per bottle design, save it, and then the system can inspect multiple component types in a single session by switching templates. Each template remembers the exact 7-step sequence and all dimension targets for repeatability.

What materials can the PBMS inspect? +

PBMS is optimized for plastic bottles: HDPE (high-density polyethylene), PP (polypropylene), and PET (polyethylene terephthalate). The collimated blue LED illumination is specifically tuned for the optical properties of plastics, ensuring consistent edge detection and measurement accuracy across clear, translucent, and opaque plastic surfaces.

Does the PBMS include SPC and CPK analysis? +

Yes. The PBMS includes built-in Statistical Process Control (SPC) and CPK analysis. Generate reports by shift, batch, or daily period. Track process trends, identify out-of-control signals, and maintain calibration traceability with NABL-compliant documentation.
